AV Review – EluneVision 4K ALR NanoEdge Screen

So when we first built the Coffin Family Theater 2.0, one of my biggest challenges was finding a screen that would get the job done.

When we planned the room we decided that the projector was going to go into an AV room directly behind the theater, this is rater common practice, it keeps the room cooler and quieter, but at the cost of a very long throw distance.

The farther from the screen a projector is, the less light it will produce, much like when you shine a flashlight into the dark, 2 ft in front of you it is bright like daytime, 20 ft away you cant really see.

So the premise is the same for home theater projection.

The farther you put the screen, the less lumens that will hit the target.

The way that you can compensate for this is with a high gain screen, I previously had a Da-Lite Pearlesence 2.8 gain screen, which was bright as the sun in a light treated room. Sadly the trade-off was losing the inky black levels that my JVC projector is so capable of producing.

What you get is super bright whites, but slightly grey blacks at the very best of times.

So in the age of 4k and HDR, it seemed like a logical step to find a more appropriately suited screen for the theater.

The problem I found sadly is, there is no high gain screens left on the market.

With projector manufacturers having better and better contrast and brightness, the screen industry moved away from making these high gain screens because now the projectors were doing that heavy lifting.

So after many days of searching and researching, I landed on the EluneVision ALR 4k NanoEdge screen.

With a gain of just 1.3, and being silver instead of white, I hoped and prayed it would get the job done, especially since the price tag was insanely high at $4830cdn.

Now before I get into the assembly review (spoiler alert – which was a nightmare), I will talk about the actual picture I get now.

In a word, it is outstanding.

The crispness and clearness of image in darkly lit scenes is amazing. Detail I simply could not see before because it was washed out, is now replaced with subtle black tones and shadow details.

Subtle shades in clouds in HDR will now pop off the screen. Neon lights contracts accurately again the pitch black of night in Ready Player One.

Color looks more natural and not nearly as washed out.

Now all of this is great and all, but getting to that stage, was an absolute mess.

The frame for the unit is made from machined aluminum and weights a ton, about 50lb all told for a 164″ screen.

There are 2 layers to the frame, the actual frame the screen attaches too, and then the nanoedge velvet frame that surrounds it.

20180624_13382620180624_13383520180624_133821

They both work in perfect harmony when installed right.

In my case, installing it right was not possible at all due to a manufacturing error, one that to this day, has not been corrected, and sadly i doubt will ever be. But more on that later.

Once you assemble the frame, you have to tip it up, lay the screen material on the floor face down, then place the frame as carefully as possible on top of it.

This in and of itself is a very challenging 2 man job.

20180624_162321

You must balance a 50lb, 7ft x 10ft frame over what is essentially the worlds most fragile rubber band, and place it down gently enough as to not scratch or crease it.

20180624_162313

Once that pain is behind you, you must pull the screen with a little hook and put on tension springs to make it taut, think of it like stretching saran wrap over some leftovers, just way more tedious and annoying.



20180624_17374320180624_173805

Now my problem came in what I can only assume was a manufacturing error. They did not make my screen as wide as it should have been. So while stretching top to bottom worked very easily, stretching it width wise took herculean strength, to the point that the material started to rip at the seams and corner.

And still once I pulled til I was blue in the face, it was not enough.

20180624_173749

That little red knob should be up to the Velcro, missed the mark by about an inch on each side.

Now this may not have been such an issue had I been able to actually get the Nanoedge trim on, but the springs themselves were in the way of the secondary frame attaching. So there was no way to affix the velvet masking on the left and right sides.

What this left me with is the seamed edge showing on the face of the screen, completely unacceptable as this sticks out like a sore thumb when shooting an image on it.

20180624_17393020180624_17394520180624_174037

At this point I contacted the shop who sold it to me, and they put me in touch with EluneVision support.

Who to this day, has not given me a solution, not a replacement piece of screen material.

They suggested I just pull it more… Which at this point is completely impossible. Over and over suggesting I installed it incorrectly…

Let me just say this thing is so tight you could use it as a trampoline, but that is hard to convey in pictures to a man at a desk 3000 miles away.

I jumped through a pile of hoops to do everything they suggested, from completely removing and re-tensioning the screen, none of which helped.

They finally just stopped returning my emails, leaving me with a $4830 problem to solve.

Not at all what I would expect from such a high end piece of AV equipment.

But lesson learned, never will I do business with these hacks again.

I had to come up with my own solution, which pretty much worked out to making my own black trim from plywood, 2×4’s and fabric on the left and right side.

Talk about a trailer trash fix to what should have been the Cadillac of screen.

Once everything was said and done, I am thrilled with the image I am getting, and that is all that matters now.

Just wish I had got what I paid for, instead of the sub par mess.

All I can hope for is that you dear readers, will see this and thing twice before picking up one of EluneVision’s screens.

You are much better off looking into Stewart or someone similar.

AV Review – SVS PB-Ultra 16 – Bring on the BOOM!

So after close to 5 years in our home theater now it has seen many updates and changes. From adding speakers for Atmos, new pre-pros, a few new projectors and a new screen, none have had the literal impact that adding a second sub-woofer has.

Many year ago I grabbed a SVS PB13 Ultra, and it blew me away, we had a small little theater back then, jammed into an old bedroom, so the “little” sub did the job great, it could easily pressurize a 200 sq ft room.

Fast forward 4 years, and drop it into a room almost double in size, and it just lacked that room filling bass I was used to.

I did compensate a bit by having 2 built in Buttkicker LFE in the front row of seats, but there was always something lacking, missing that punch you in the chest bass when something explodes.

So enter the PB16 Ultra, the latest and greatest subwoofer from SVS.

Packing a massive 16″ driver powered by a killer 1500watt Class D Sledge amplifier and with it’s own built in DSP for tweaking (via the SVS app for your tablet or phone).

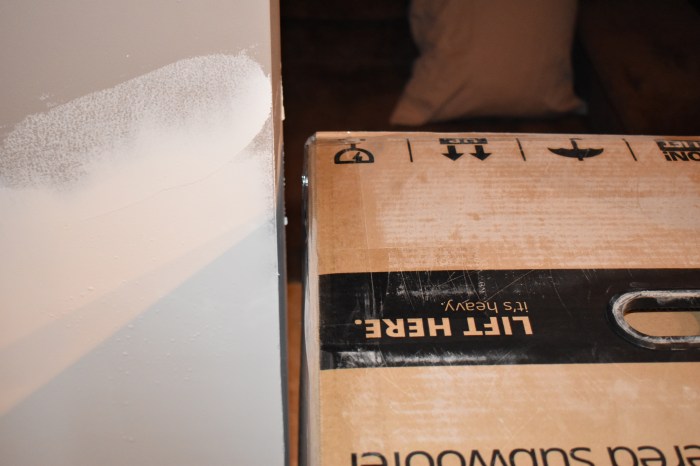

Weighing in at a whopping 174lbs (more than I weigh for heaven sake!) and bigger than your average dishwasher, it is immediately apparent this sub means business. I could barely get it through the door to the theater while still in the box.

DSC_0019DSC_0020

DSC_0022

Unpacking the beast itself even posed a challenge, I have never had such detailed instructions on how to remove something from cardboard box before.

DSC_0027

Now one of the hardest things about putting 2 subs in the same room and getting them to play nice is placement. This was a bit of a challenge as doing a sub crawl with a 175lb sub is just nuts. And there is no way you will be putting this thing into your listening position either. So I pretty much had to decide on where I wanted it and let Audessy hopefully smooth things out.

My original plan was this unit would replace the PB13 Ultra, but after a lot of hours of tweaking and moving the PB13 around, I found a combo that allowed them to play together nicely.

** Not the Final resting place for the PB13, just first pass **

DSC_0029DSC_0028

Once positioned, Audessy32 really did all the heavy lifting, no pun intended. It is hands down some of the most amazing calibration software available to the masses.

Back in the day I used to do it all by hand with a SPL meter. Speaker by speaker, micro adjusting the SPL of each one, it was a half a day process when you made a change.

Now with the addition of Audessy, it takes about 30 mins total to do a full room calibration, which includes full room correction, something that is imperative in a large room with treatments.

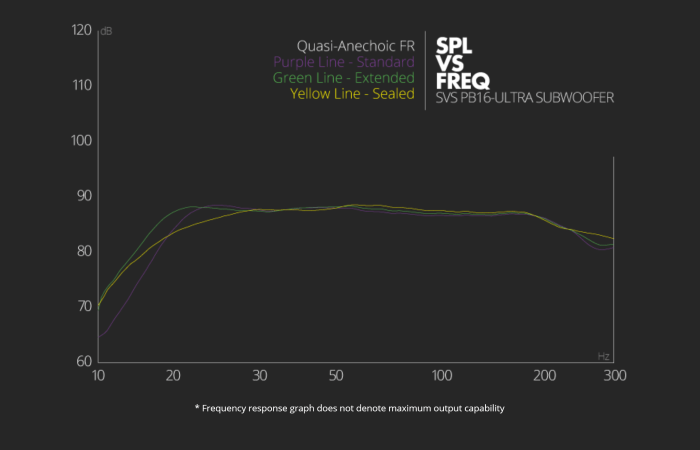

Another nice feature that SVS has is a weird analog method of tweaking performance. All the large SVS subs come with foam port blockers, this enables you to move your boxed sub from a ported design to a completely sealed box, or a hybrid in between, with each port blocked dropping the low end bass a few hz while increasing DBs to the lower frequencies.

Foam---SVS-PB16-Ultra

So all ports open enable you to get solid performance to 15hz with a 10db hit, with all ports closed though you can take 14hz up by 10db to theater reference levels.

It is an odd little feature that can really make a big impact.

Capture

So with all the tweaks and setup behind me, it was time to check out the performance.

One of my fondest memories of my little PB13 was the first movie we watched, How to train your dragon. When we first watched this many years ago, the PB13 rocked the chairs we were in during the final battle with the uber dragon. The whole room, heck, the whole house shook when he flapped his wings. This was something that has been missing since we build Coffin Theater 2.0.

Well I am glad to say, that feeling is back.

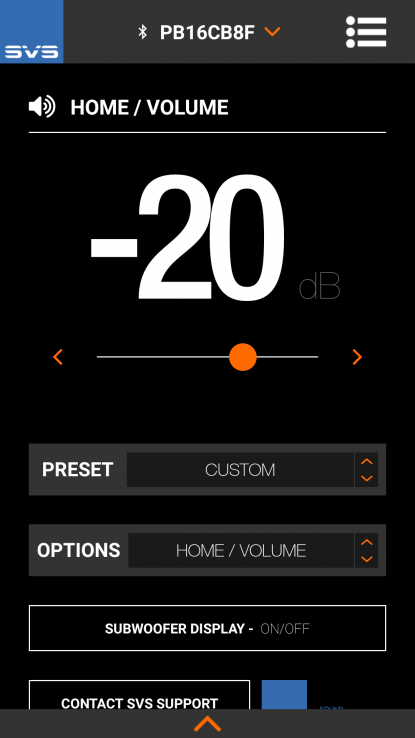

I popped in the HTTYD disk and immediately jumped to the same scene. After a few minor tweak to the SPL level of the sub via the app, I was again enjoying chest pounding bass, something lacking for almost 5 years now.

Screenshot_20170301-142018

The first full length action movie I watched was the fantastic Ready Player One. I invited over all my guys for the subs debut performance and holy heck, it did not disappoint at all.

I have never in my life heard and felt such impactful yet nuanced bass. From the subtle thrums of the soundtrack, to the gut punching wreaking balls, from King Kong’s rampage shaking your eyeballs to Mega-Godzilla’s stomping that made me wonder if my houses foundation would hold up.

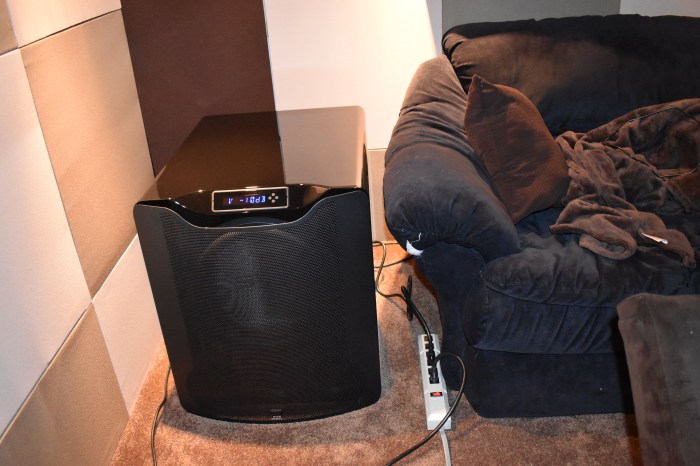

This sub is the real deal. With crystal clear bass and enough power to pressurize a 350sq ft room by itself.

About the only thing I could see scaring people away here is the price. Up here in Canada they run a staggering $3999. It is a little better in the US, coming in at $2499.

PB16-Ultra

If you are down south, you may be able to grab one of these for a deal from 3rd party Amazon.com sellers. I have seen them as low as $2099 for open box returns. Sadly they do not ship to Canada, but that is not to say you could not order one to a border town and go for a drive to pick it up and save yourself a grand or more.

That said though, if you can afford it, it is worth every nickle. You are unlikely to find a better sounding, harder hitting sub on the market today.

DSC_0030
